Product Description
GENERAL INFO
SPEEDS:
1 x 8
WEIGHT:
16.1 kg (35.5 lb)
GEAR INCHES:
31" - 95" (2.45 - 7.57 m)
FRAME SIZES:
One size
DISTANCE: SEATPOST TO HANDLEBAR:
60 - 64 cm (23.6 - 25.2 in)
DISTANCE: SADDLE TO PEDAL:
62 - 110 cm (24.4 - 43.3 in)
SUGGESTED RIDER HEIGHT:
147 - 190 cm (57.9 - 74.8 in)
MAX GROSS VEHICLE WEIGHT:
140 kg (308.6 lb)
MAX RIDER WEIGHT:
120 kg (264.6 lb)
FRAME

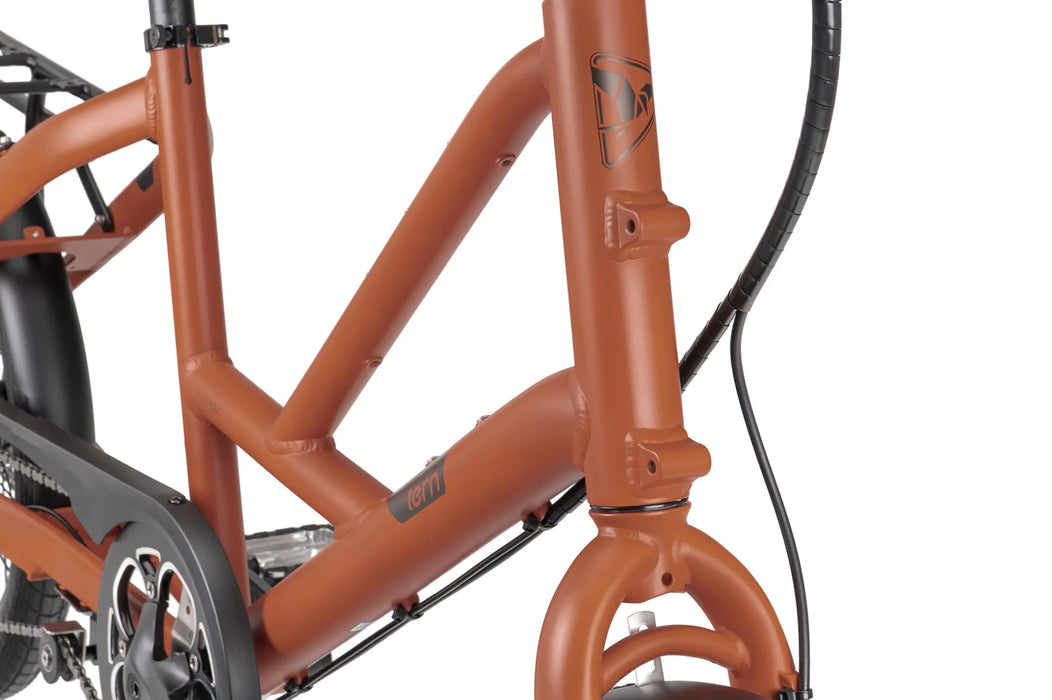

FRAME:
Tern Short Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 140 kg

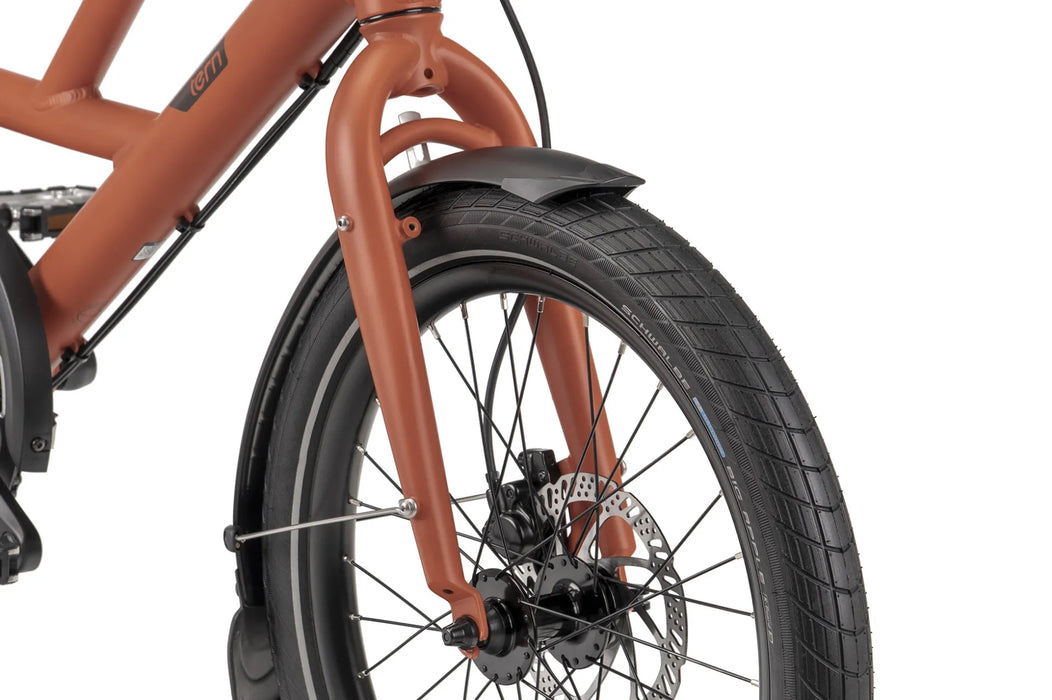

FORK:
Steel, EFBE approved: 140 kg
COCKPIT
STEM:
Forged, 31.8
HEADSET:
TH, cartridge bearings
HANDLEBAR:
Low riser, 31.8, 6061-AL
GRIPS/BAR TAPE:
Velo ergonomic, lock-on
SADDLE:
Velo Comfort
SEATPOST:
31.6 mm, 6061-AL, micro-adjust clamp
SEATPOST CLAMP:
Tern Collar
BRAKES
FRONT BRAKE:
Hydraulic disc
REAR BRAKE:
Hydraulic disc
BRAKE LEVERS:
Hydraulic disc
BRAKE CABLE & HOUSING:
Hydraulic disc
WHEELS
FRONT HUB:
Disc, aluminum
REAR HUB:
8 spd, disc, aluminum
SPOKES AND NIPPLES:
Stainless steel
RIMS:
Doublewall, for disc
TIRES:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
TRANSMISSION
SHIFTER(S):
1 x 8 spd, trigger
REAR DERAILLEUR:
Shimano Altus
CRANKSET:
Forged 6061-AL crankarm
CASSETTE/FREEWHEEL:
11-34T, 8 spd
BOTTOM BRACKET:
FSA, Cartridge, sealed bearings
CHAIN:
KMC, 8 spd
PEDALS:
Urban with non-slip surface
SHIFTER CABLE & HOUSING:
SP
BELLS & WHISTLES
BELL:
Aluminum

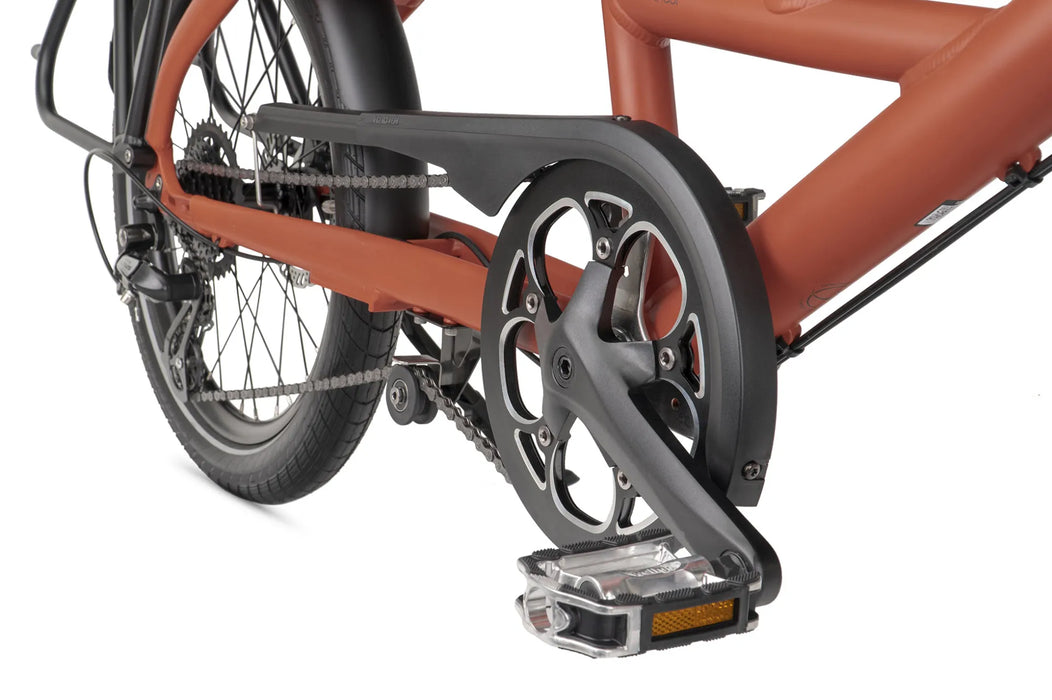

CHAINGUARD:
SKS Chainblade
KICKSTAND:
Pletscher design, rear mount
LUGGAGE SOCKET:
Combo Mount
FENDERS:
SplashGuard, stainless hardware

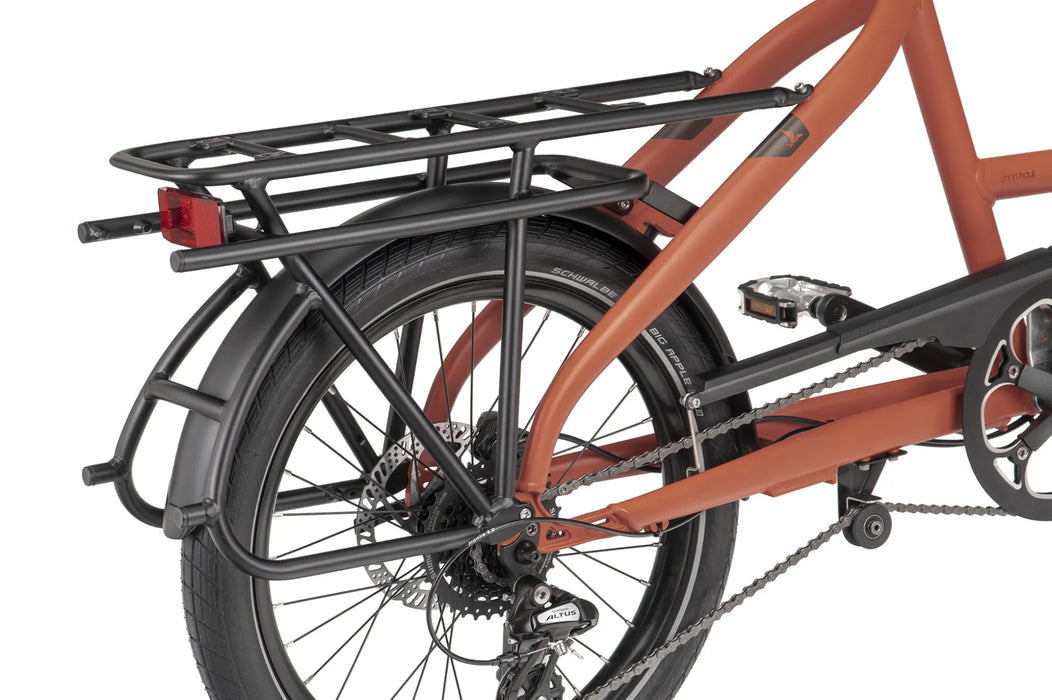

RACK(S):
Atlas Q Rack, 6 point mounting, Vertical Parking, 50 kg capacity
