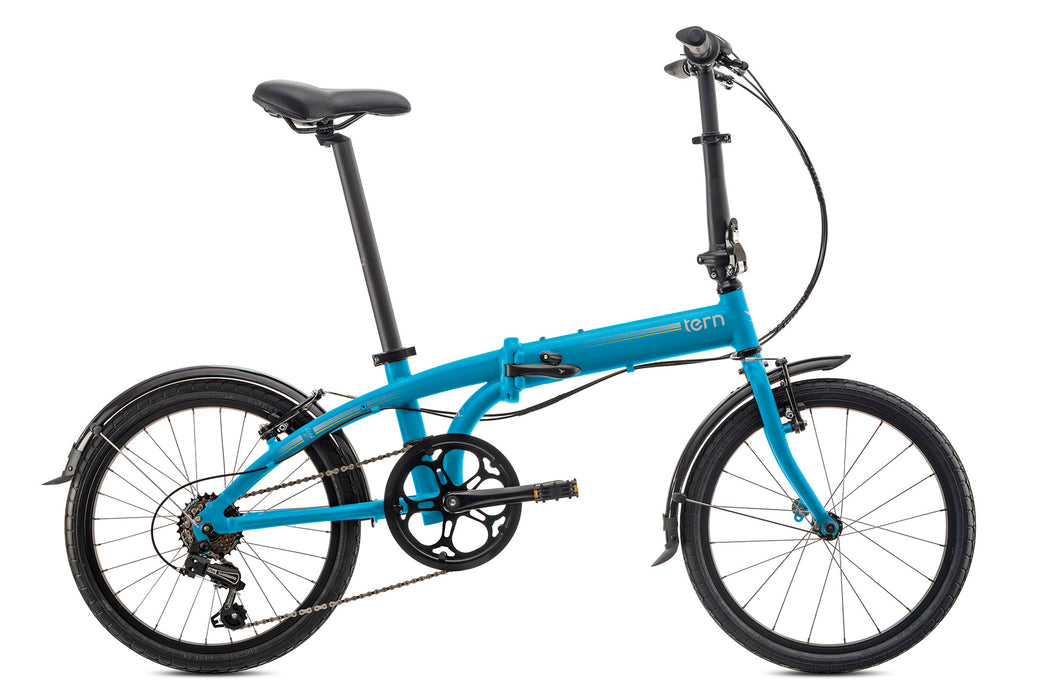

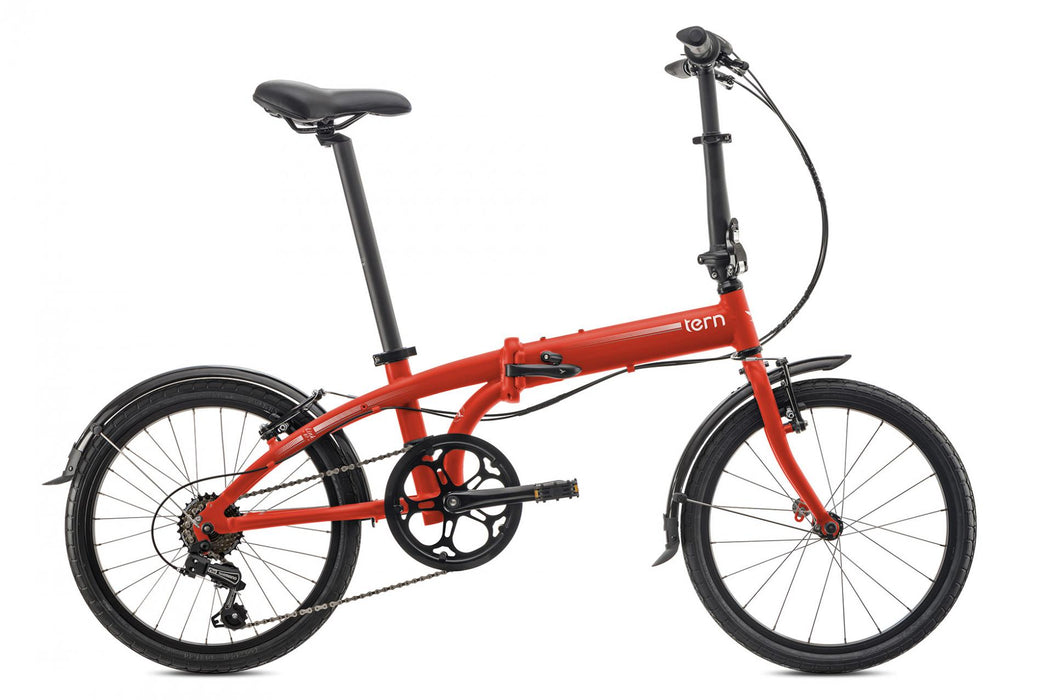

The Link B7 is built for exploring. It folds down small in ten seconds, so you can bring it with you anywhereâ€”on the subway, in your car, or even store it indoors at night. With 7-speed gearing, eyelets for rear racks, and a height-adjustable telescopic handlepost, it packs a ton of versatility. Ride one and discover the convenience of Tern.
- Folds small but rides like a full-size bike
- 20â€ wheels make it easy to stop-and-go on busy streets
- Wide 7-speed gearing for climbing hills and racing through the city

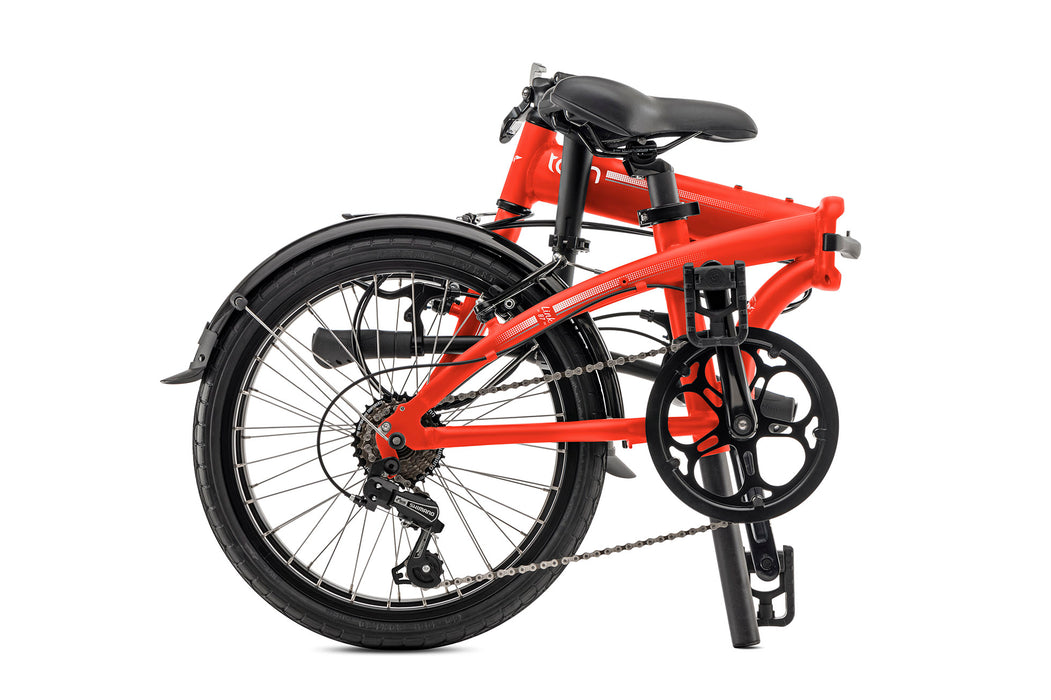

- Folds compactly for storage and transport
- Adjusts to fit a wide range of riders
- Eyelets for adding rear racks
- Optional fenders for rainy days
SPEEDS : 1 x 7
WEIGHT : 12.1 kg (26.7 lb)
GEAR INCHES : 36" - 72" (2.86 - 5.72 m)
FOLDING SIZE : 39.5 × 80 × 73 cm (15.6 × 31.5 × 28.7 in)
FOLDING TIME : 10 sec
FRAME SIZES : One size
DISTANCE : SEATPOST TO HANDLEBAR : 0 - 0 cm (0 - 0 in)
DISTANCE : SADDLE TO PEDAL : 70 - 96 cm (27.6 - 37.8 in)
SUGGESTED RIDER HEIGHT : 142 - 190 cm (55.9 - 74.8 in)
MAX GROSS VEHICLE WEIGHT : 120 kg (264.6 lb)
MAX RIDER WEIGHT : 105 kg (231.5 lb)
FRAME : Tern Link, aluminum, FBL 2 Joint, 3 patented technologies
FORK : Hi-tensile steel
HANDLEPOST : Q-Lock, forged aluminum, patented
STEM : Telescope, 6061-AL
HEADSET : Cartridge
HANDLEBAR : Flat bar, 6061-AL
GRIPS/BAR TAPE : BioLogic Ergo, Kraton
SADDLE : Velo Comfort
SEATPOST : SuperOversize, 6061-AL, micro-adjust clamp
SEATPOST CLAMP : SuperOversize, 6061-AL
FRONT BRAKE : V, aluminum, linear spring
REAR BRAKE : V, aluminum, linear spring
BRAKE LEVERS : V, aluminum bracket/lever
BRAKE CABLE & HOUSING : Anti-compression housing, slick cables
FRONT HUB : Mini, aluminum
REAR HUB : 7 spd, aluminum
SPOKES AND NIPPLES : Steel / Stainless steel
RIMS : Aluminum
TIRES : Schwalbe, 47-406 / Kenda Kwest, 20 x 1.5" / CST, 20 x 1.5"
SHIFTER(S) : Shimano, 1 x 7 spd, twist
REAR DERAILLEUR : Shimano Tourney
CRANKSET : Forged 6061 aluminum, 52T
CASSETTE/FREEWHEEL : Shimano 7 spd, 14-28T
BOTTOM BRACKET : Two-piece
CHAIN : 7 spd
PEDALS : Folding, alloy body
SHIFTER CABLE & HOUSING : SP
BELLS & WHISTLES
BELL : Aluminum
KICKSTAND : Deluxe center mount
CLIP SYSTEM : Magnetix 2.0
LUGGAGE SOCKET : No
FENDERS : Opt : RP Chromeplastic, stainless hardware
*Note : These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
FBL™ 2 Frame Joint
3 patented technologies and incredibly precise manufacturing make the FBL 2 frame joint one of the best in the business. It’s strong, secure, and thanks to integrated bearings, always easy to use.
The patented design puts four igus® bearings between the aluminum and stainless steel moving parts so the folding action is always smooth and friction-free.
The front and rear joint surfaces lock together to eliminate torsional movement.
Floating Point Technology
Patented technology allows the lever to fold flat and brace against the joint for protection in transit.
Good things are built to last and that’s why the FBL 2 Joint is designed to be dealer serviceable. We keep every part in stock and if your bearings ever wear out, your dealer can replace them in a few minutes.
Stainless Steel Hardware
Cold-worked stainless delivers the durability and reliability needed for daily riding in all weather conditions.
Stiffer by design
The rear half of Tern frames use a patented 3D structure we call DoubleTruss to build in extra stiffness. It helps resist torsional forces so our bikes flex less. That means increased stiffness and much better power transfer from the pedals to the rear wheel. The proof’s in the ride.
German-made igus bearings make our frame joints the smoothest in the business. And, they’re dealer serviceable so that if they ever wear out, they can be replaced and your frame will be as good as new in just a few minutes.
The Q-Lock is quick and easy to use : Close the handlepost lever and the AutoLock engages, holding the lever in the locked position. The Q-Lock is also safe and strong : it exceeds tough European EN standards for strength and durability.
CHOOSE YOUR RIDE POSITION

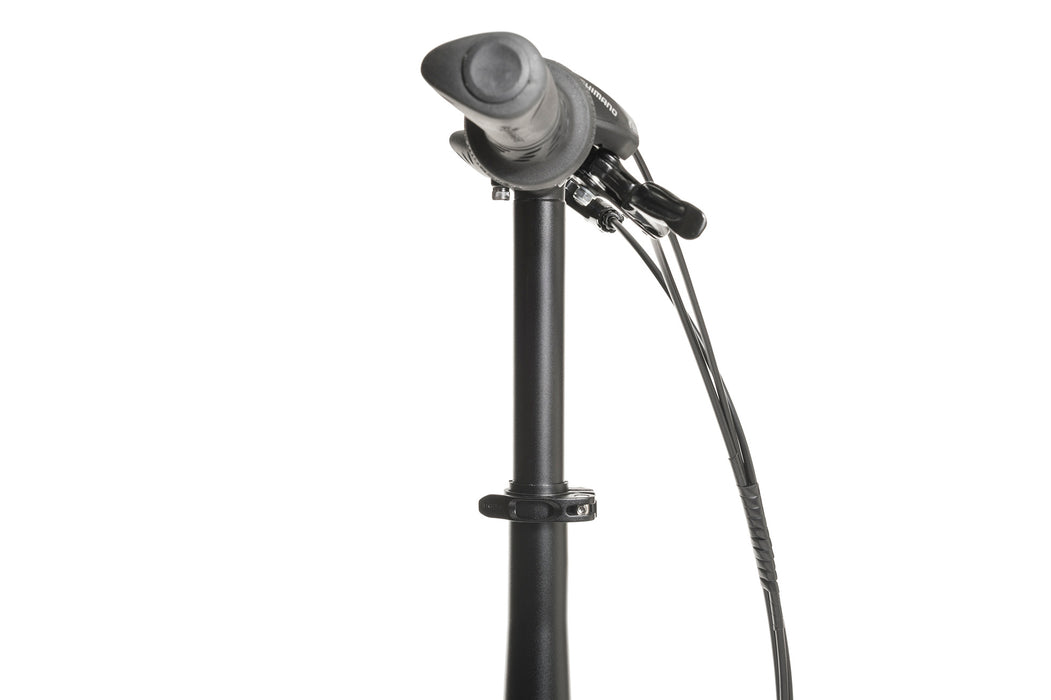

Our Telescopic Handlepost gives you the option of riding high for comfort, or low for aerodynamics. It retracts into a short, compact package for portability, but only takes seconds to extend. Plus, it’s stiff and strong, so you get full-bike rigidity.
Keep it together
The Magnetix 2.0 uses powerful magnets to keep your bike folded for situations like carrying your bike up and down stairs. With a pull force 10-15 Kgf, the Magnetix 2.0 will keep your bike folded even when being jostled and moved about.
