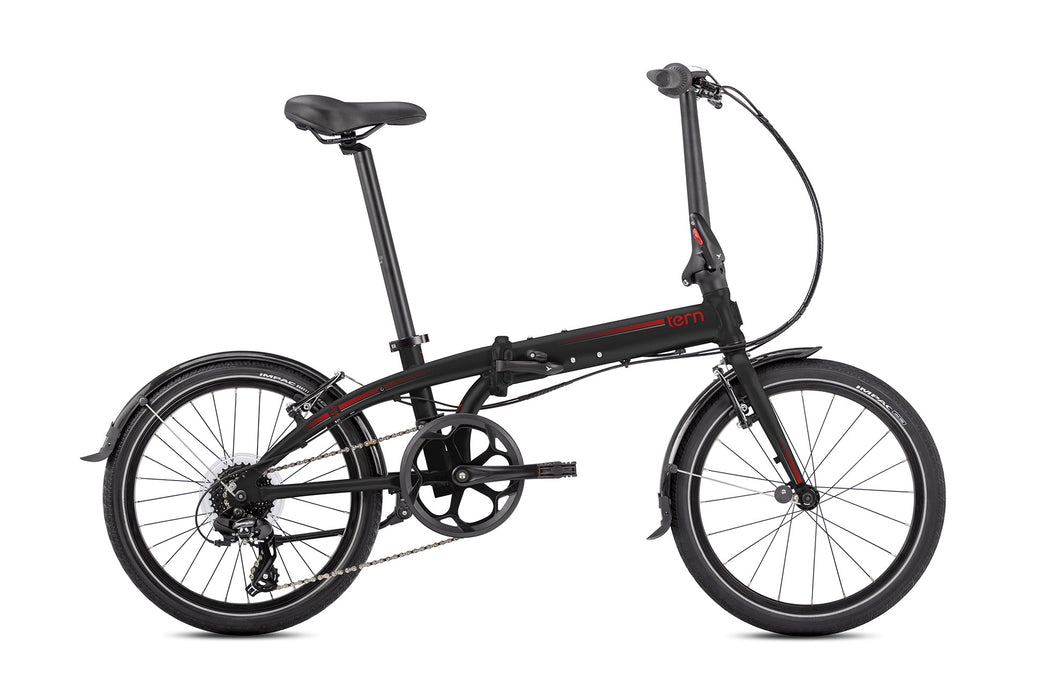

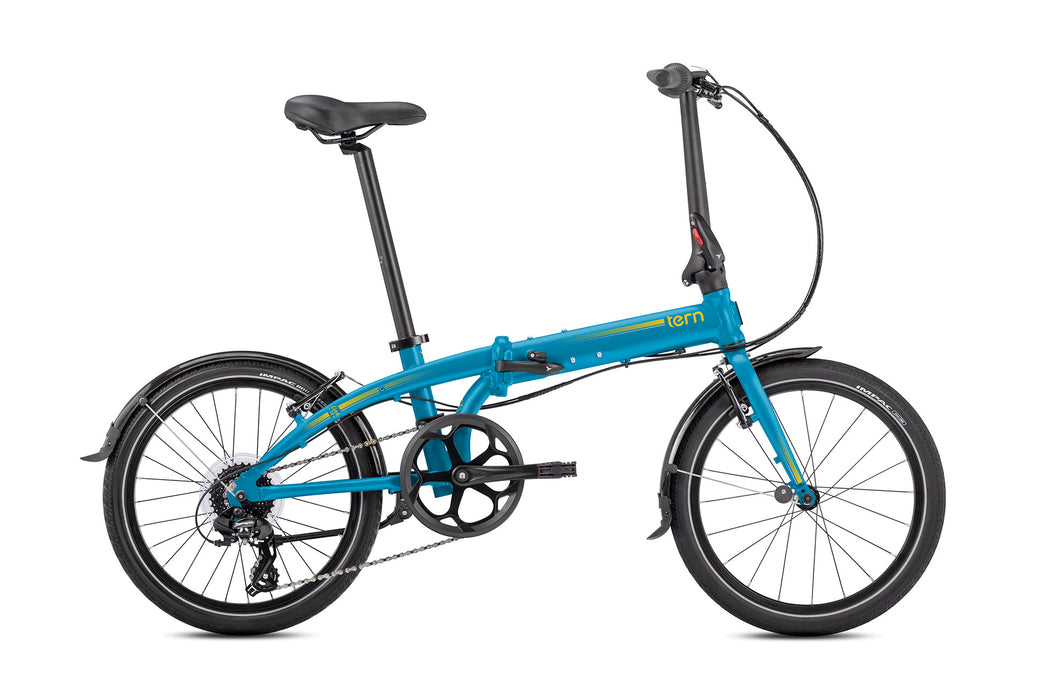

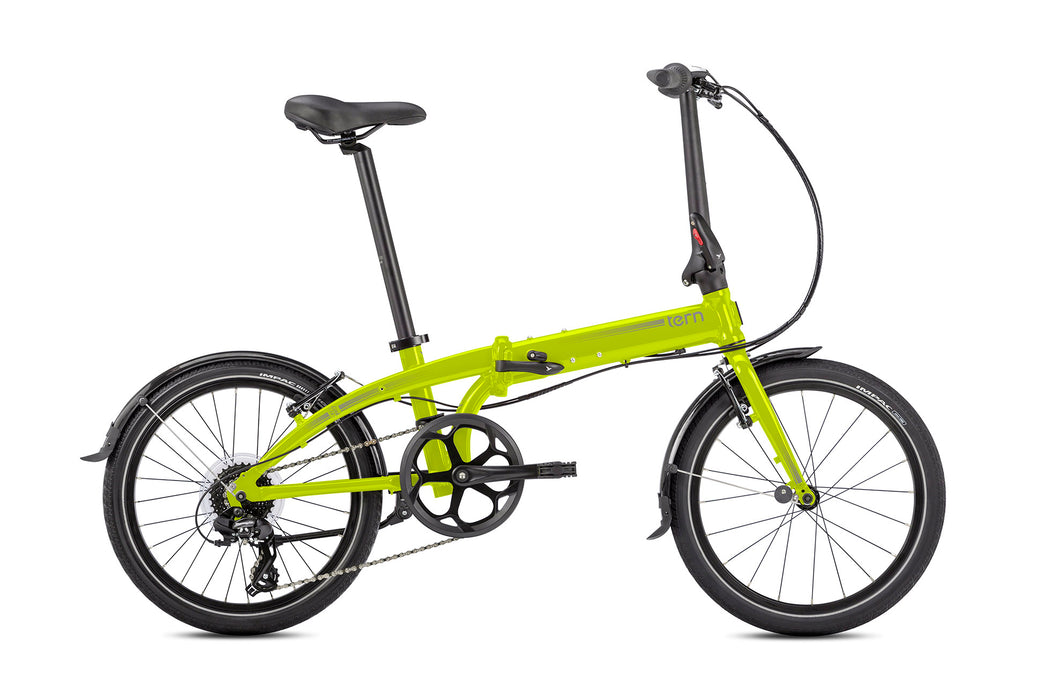

Product Description
The Link C8 brings our core technologies to a bike with an amazing price and even better ride. With unique folding technology, versatile gearing, and comfortable tires, the C8 is the People's Choice. It folds fast, and folds small so that it's always easy to tuck away or take with you.
- Entry-level price with advanced Tern technology, including the super-stiff Physics 3D handlepost

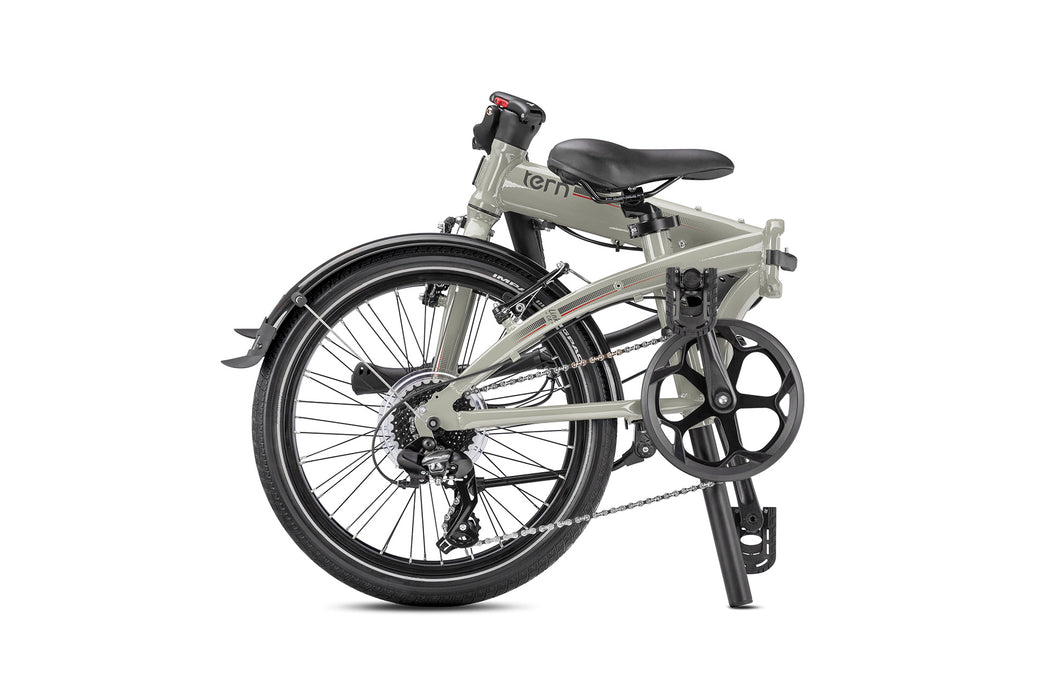

- Folds in 10 seconds—put it under your desk or take it on the subway
- 20" wheels make it easy to stop-and-go on busy streets
- Wide 8-speed gearing for climbing hills and racing through the city
- Fold and store indoors for the best theft protection
- Options : rack, fenders, and integrated lighting with electricity-generating hub
Tech Specs
GENERAL INFO
SPEEDS : 1 x 8
WEIGHT : 12.8 kg (28.2 lb)
GEAR INCHES : 35" - 95" (2.78 - 7.57 m)
FOLDING SIZE : 39.5 × 80 × 73 cm (15.6 × 31.5 × 28.7 in)
FOLDING TIME : 10 sec
FRAME SIZES : One size
DISTANCE : SEATPOST TO HANDLEBAR : 0 - 0 cm (0 - 0 in)
DISTANCE : SADDLE TO PEDAL : 70 - 96 cm (27.6 - 37.8 in)
SUGGESTED RIDER HEIGHT : 142 - 190 cm (55.9 - 74.8 in)
MAX GROSS VEHICLE WEIGHT : 120 kg (264.6 lb)
MAX RIDER WEIGHT : 105 kg (231.5 lb)
FRAME
FRAME : Tern Link, aluminum, FBL 2 Joint, 3 patented technologies
FORK : Integrated, hi-tensile steel
COCKPIT
HANDLEPOST : Tern Physis 3D, 3D forged, 5 patented technologies
STEM : Fixed height, forged QR
HEADSET : Flux, cartridge bearings, Physis integrated
HANDLEBAR : Flat bar, 6061-AL
GRIPS/BAR TAPE : BioLogic Ergo, Kraton
SADDLE : Velo Comfort
SEATPOST : SuperOversize, 6061-AL, micro-adjust clamp
SEATPOST CLAMP : SuperOversize, 6061-AL
BRAKES
FRONT BRAKE : V, aluminum, linear spring
REAR BRAKE : V, aluminum, linear spring
BRAKE LEVERS : V, aluminum bracket/lever
BRAKE CABLE & HOUSING : Anti-compression housing, slick cables
WHEELS
FRONT HUB : Mini, aluminum Opt : Panasonic dynamo
REAR HUB : 8 spd, aluminum
SPOKES AND NIPPLES : Stainless steel
RIMS : Aluminum
TIRES : Impac BigPac, 50-406, Reflex
TRANSMISSION
SHIFTER(S) : Shimano, 1 x 8 spd, twist
REAR DERAILLEUR : Shimano Tourney TX
CRANKSET : Forged 6061 aluminum, 52T
CASSETTE/FREEWHEEL : Shimano 8 spd, 11-30T
BOTTOM BRACKET : Two-piece
CHAIN : 8 spd
PEDALS : Folding, alloy body
SHIFTER CABLE & HOUSING : SP
BELLS & WHISTLES
BELL : Aluminum
KICKSTAND : Deluxe center mount
CLIP SYSTEM : Magnetix 2.0
LUGGAGE SOCKET : Yes
FRONT LIGHT : Opt : Deluxe LED
REAR LIGHT : Opt : Deluxe LED
FENDERS : Opt : RP Chromeplastic, stainless hardware

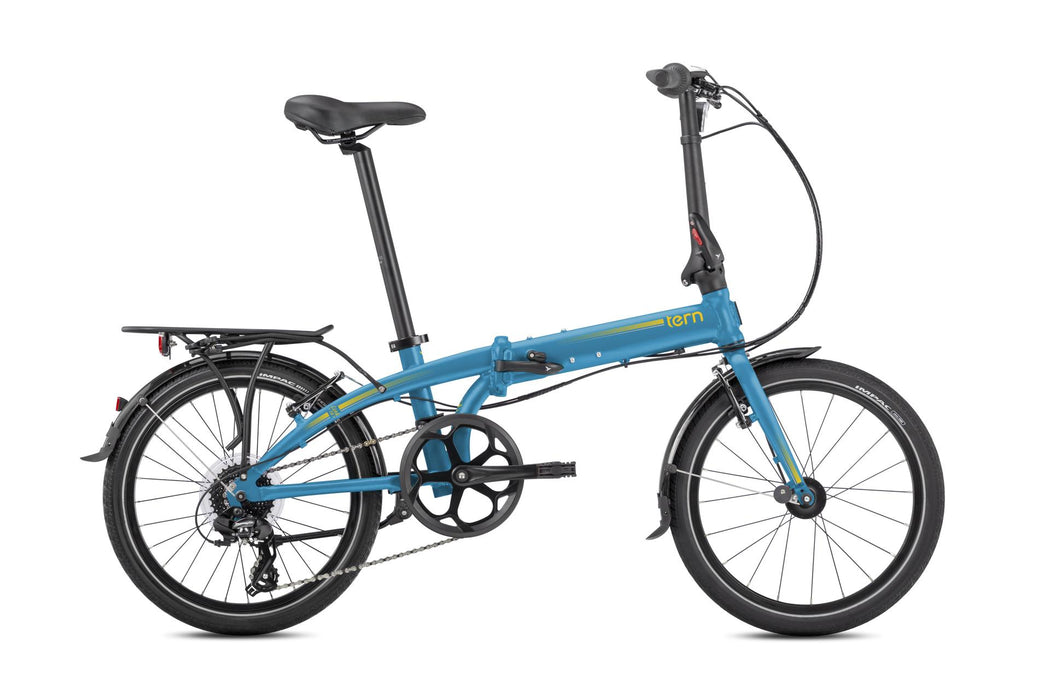

RACK(S) : Optional
*Note : These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
Features
OCL+™ Frame Joint
Robust folding technology
A heavy-duty update to our iconic OCL frame hinge, the OCL+ is built to exceed ISO 4210 and EN 15194 testing requirements. Leveraging the hinge design of the long-tail Tern Cargo Node, the OCL+ features a single-shaft design, advanced welding techniques, and robust gussets, so it stays stiff and strong during even the fastest commutes.
Stronger by Design
Making the hinge taller and moving the pivoting surfaces outward from the center axis more than doubles overall strength and stiffness. It’s a difference you’ll feel from your very first ride.
Smooth Operation
The patented design puts four igus® bearings between the aluminum and stainless steel moving parts so the folding action is always smooth and friction-free.
Interlocking Joint
The front and rear joint surfaces lock together to eliminate torsional movement.
Easy to Use
Large rounded surfaces on the lever and joint bodies are easy on your hands and allow good leverage for easy operation.
Doubly Safe
Close the lever and the AutoLok™ automatically locks in place for extra, easy security.
Floating Point Technology
Patented technology allows the lever to fold flat and brace against the joint for protection in transit.
Serviceable
Good things are built to last and that’s why the OCL+ Joint is designed to be dealer serviceable. We keep every part in stock and if your bearings ever wear out, your dealer can replace them in a few minutes.
Precision-Machined
A machining tolerance of only 50 microns ensures a tight fit and eliminates looseness and rattling.
Stainless Steel Hardware
Cold-worked stainless delivers the durability and reliability needed for daily riding in all weather conditions.
N-Fold™ Technology
The faster fold
With N-Fold Technology, Tern bikes fold small and fast—in three easy steps. It’s simple enough for anybody to master. And with the handlepost folded to the outside of the package, Tern bikes can also roll when folded for easy transport.
DoubleTruss™ Technology
Stiffer by design
The rear half of Tern frames use a patented 3D structure we call DoubleTruss to build in extra stiffness. It helps resist torsional forces so our bikes flex less. That means increased stiffness and much better power transfer from the pedals to the rear wheel. The proof’s in the ride.
Physis™ 3D Handlepost
The new benchmark
Five patented technologies and unique manufacturing technology add up to the strongest, stiffest folding handlepost available. The Physis uses a special manufacturing process called 3D forging, which forms the post from a single piece of aluminum, eliminating all welds.
No Flex
To eliminate flex, the Physis uses a massive joint knuckle and a post that gradually tapers from thick at the base to thin. Moreover, it has 150% more clamping height between the fork steerer and the handlepost than common designs.
Flux Technology
The base of the Physis is machined so it functions as the upper race of the headset. This patented direct integration contributes to the incredible stiffness of the design.
Interlocking Halves
Joint surfaces lock together to improve torsional stiffness. We've fine-tuned the shape to virtually eliminate squeaks.
Redundant Double Bolts
Two bolts clamp the Physis to the fork steerer for improved safety.
igus® Bearings
The patented design puts sliding bearings between the moving parts so the folding action is always smooth and friction-free.
Large, Smooth Lever
Large rounded surfaces are easy on your hands and provide good leverage for easy operation.
AutoLok Technology
Close the lever and it automatically locks in place, for extra, easy security—using an aluminum pin.
Floating Point Technology
Patented technology allows the lever to fold flat and brace against the joint for protection in transit.
SpringLock Technology
Patented SpringLock technology holds the adjustment rod firmly in place so the locking lever is always properly tensioned and can never vibrate loose.
Serviceable
Good things are built to last and that’s why the Physis is designed to be fully dealer serviceable. We keep every part in stock and replacing the bearings can be done in minutes.
TriSeal Design
Three rubber seals keep weather out and the headset bearings functioning smoothly.
Precision-Machined
A machining tolerance of only 50 microns ensures a tight fit and eliminates looseness and rattling.
Stainless Steel Bolts
Cold-worked stainless hardware delivers the durability and reliability needed for daily riding.
Andros™ Stem
Adjust to fit
The Andros is our patented adjustable stem that lets you set your handlebars where you want—no tools, no fuss. In just seconds, you can set your riding position to long and low in a tough headwind, or upright and comfy for riding around town. You decide how you want to ride and the Andros makes your bike fit.
Quick Release
Patented quick-release, tool-free design is easy to operate.
TwinStem Design
The Andros design uses two stems, spaced widely apart for excellent torsional stiffness.
Fits the Family
Accommodates riders of all sizes so one bike can be shared by multiple riders.
Forged Construction
The patented design is FEA optimized and fully forged for maximum strength with minimum weight.
Built to Last
Stainless hardware and brass bushings for long-term durability.
Swept-Back Handlebars
Dutch-style comfort
When you ride around the city, you want to take it all in. Our swept-back handlebars let you sit comfortably upright so you can see everything that goes by. And a more natural grip position is extra kind on your wrists.
Velo Ergonomic LockOn Grips
Be kind to your hands
ErgoLock grips are nice and wide for excellent palm support so your hands can relax during the ride. They also lock in place on the handlebars so they’re always in the correct position, unlike non-locking grips which tend to rotate out of position.
Shimano 1.5W Dynamo Hub
Solar, wind, hydro...
This lightweight hub generates electricity to power your bike lights. Beyond creating your own green power, you'll be able to strike a few things from your to-do list because you'll never have to replace batteries on your lights or worry about recharging. Shimano's design ensures rotational smoothness and long life thanks to a clever internal sleeve that shuts out water, mud, and dirt.
Schwalbe Big Apple Tires
Cush for your tush
Big Apples are special because they’re fast rolling AND super comfy. Sounds hard to believe but you’ll just have to take them for a ride to become a believer.
Faster Rolling
Wide tires roll better than skinny tires at the same tire pressure. Yes, it’s true! Big Apples are extra special because they use a light and flexible tread and sidewall for extra low rolling resistance.
Wide for Comfort
Super-wide Big Apple tires are like 2" of super-efficient suspension. They roll smoothly over drainage grates, train tracks and potholes with little complaint.
Puncture Protection
Big Apples feature a Kevlar belt to protect from punctures.
Reflex for Safety
Each Big Apple tire features a reflective stripe so you are immediately, and obviously, visible to cars approaching from the side.
Shimano Claris 1 x 8 Drivetrain
Simple and clean
For urban riding, a 1x gear set up is the way to go for simplicity and low maintenance. Shimano’s Claris derailleur combined with a Shimano trigger shift is fast and precise and gives you 8 widely spaced gears.
Magnetix™ 2.0
Keep it together
The Magnetix 2.0 uses powerful magnets to keep your bike folded for situations like carrying your bike up and down stairs. With a pull force 10-15 Kgf, the Magnetix 2.0 will keep your bike folded even when being jostled and moved about.
Luggage Socket™
Carry more stuff
Fix the Tern Luggage Truss to the Luggage Socket and you can plug in your choice of front luggage : rack, basket, or bag. If it’s KlickFix compatible, it’ll work.
Freelance™ Fenders
Hey good lookin’
The Freelance Fenders have a hidden rear stay design to keep the design of the bike clean and uncluttered. But good looks wouldn’t mean much unless they did a great job of keeping road spray off you. And that’s just what they do.
Freight™ Rack
Everyday workhorse
Don’t let the clean lines of the Freight Rack fool you―it’s ready to get to work hauling your stuff. The upper deck is made from oversized tubular aluminum so it’s very stiff―even when fully loaded.
